Hot selling China factory price thermal gap filler pad 1.5mmT for mother board's heat sinking in NB
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

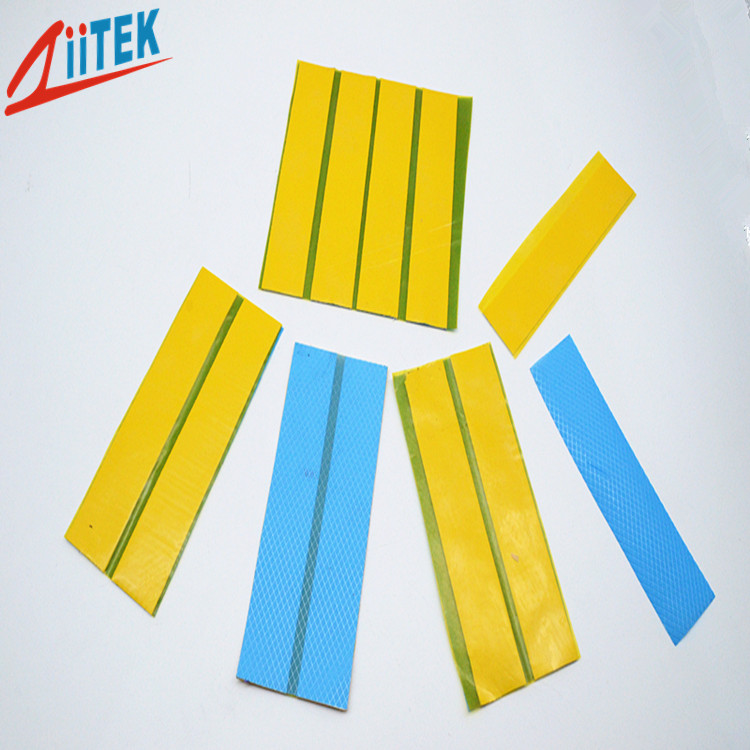

The TIF™460 thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
Features:
> Good thermal conductive: 2.0 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications:
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of TIF™460 |
| Color | Yellow | Visual | Composite Thickness | hermalImpedance
@10psi
(℃-in²/W) |
| Construction &
Compostion | Ceramic filled silicone rubber | *** | 10mils / 0.254 mm | 0.57 |
| 20mils / 0.508 mm | 0.71 |
| Specific Gravity | 2.50 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.88 |
| 40mils / 1.016 mm | 0.96 |
| Heat Capacity | 1 l/g-K | ASTM C351 | 50mils / 1.270 mm | 1.11 |
| 60mils / 1.524 mm | 1.26 |
| Hardness | 45 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 1.39 |
| 80mils / 2.032 mm | 1.54 |
| Tensile Strength | 48 psi | ASTM D412 | 90mils / 2.286 mm | 1.66 |
| 100mils / 2.540 mm | 1.78 |
| Continuos Use Temp | -50 to 200℃ | *** | 110mils / 2.794 mm | 1.87 |
| 120mils / 3.048 mm | 1.99 |
| Dielectric Breakdown Voltage | >10000 VAC | ASTM D149 | 130mils / 3.302mm | 2.12 |
| 140mils / 3.556 mm | 2.22 |
| Dielectric Constant | 10.2 MHz | ASTM D150 | 150mils / 3.810 mm | 2.31 |
| 160mils / 4.064 mm | 2.41 |
| Volume Resistivity | 7.3X10"
Ohm-meter | ASTM D257 | 170mils / 4.318 mm | 2.51 |
| 180mils / 4.572 mm | 2.58 |
| Fire rating | 94 V0 | equivalent UL | 190mils / 4.826 mm | 2.64 |
| 200mils / 5.080 mm | 2.72 |
| Thermal conductivity | 2.0 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
Standard Thicknesses:
1.5mmT
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
