3.0mm High Tack Surface Reduces Contact Resistance for LED TV

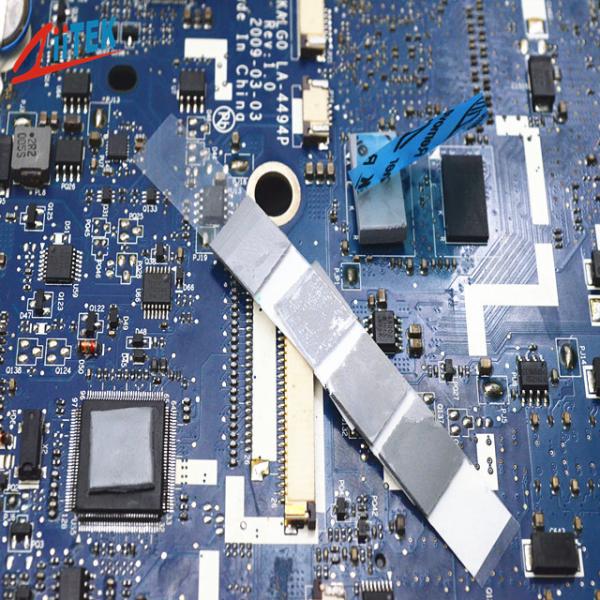

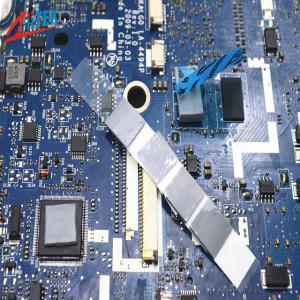

The TIF1120-10UF is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.
TIF100-10UF Datasheet-REV02.pdf
Features
> Good thermal conductive: 1.5 W/mK
>Thickness: 3.0mmT
>hardness:75 shore 00
>Colour: gray
>RoHS compliant
>UL recognized
>Fiberglass reinforced for puncture, shear and tear resistance
Applications
>cooling components to the chassis of frame
>High speed mass storage drives
>Heat Sinking Housing at LED-lit BLU in LCD
>LED TV and LED-lit lamps
>RDRAM memory modules
>Micro heat pipe thermal solutions
| Typical Properties of TIF1120-10UF Series |
| Color | gray | Visual | Composite Thickness | Thermal Impedance@10psi
(℃-in²/W) |
| Construction &
Compostion | Ceramic filled silicone elastomer | *** | 10mils / 0.254 mm | 0.16 |
| 20mils / 0.508 mm | 0.20 |
| Specific gravity | 2.2 g/cc | ASTM D297 | 30mils / 0.762 mm | 0.31 |
| 40mils / 1.016 mm | 0.36 |
| Thickness | 3.0mmT | *** | 50mils / 1.270 mm | 0.42 |
| 60mils / 1.524 mm | 0.48 |
| Hardness | 75 Shore 00 | ASTM 2240 | 70mils / 1.778 mm | 0.53 |
| 80mils / 2.032 mm | 0.63 |
| Outgasing (TML) | 0.35% | ASTM E595 | 90mils / 2.286 mm | 0.73 |
| 100mils / 2.540 mm | 0.81 |
| Continuos Use Temp | -40 to 160℃ | *** | 110mils / 2.794 mm | 0.86 |
| 120mils / 3.048 mm | 0.93 |
| Dielectric Breakdown Voltage | >5500 VAC | ASTM D149 | 130mils / 3.302mm | 1.00 |
| 140mils /3.556 mm | 1.08 |
| Dielectric Constant | 3.9 MHz | ASTM D150 | 150mils / 3.810 mm | 1.13 |
| 160mils / 4.064 mm | 1.20 |
| Volume Resistivity | 1.0X1012
Ohm-cm | ASTM D257 | 170mils / 4.318 mm | 1.24 |
| 180mils / 4.572 mm | 1.32 |
| Fire rating | 94 V0 | equivalent
UL | 190mils / 4.826 mm | 1.41 |
| 200mils / 5.080 mm | 1.52 |
| Thermal conductivity | 1.5 W/m-K | ASTM D5470 | Visua l/ ASTM D751 | ASTM D5470 |
